Android Attestation Deep Dive

This page explains how trust is established from boot through app installation and how that state is proven to a back-end service via Android hardware attestation. It expands on certificate chains, the KeyDescription schema, verification steps, and edge cases, and ties these to Android Verified Boot (AVB) and APK signing.

Android requires no special setup procedure for attestation compared to iOS. See also iOS App Attest Deep Dive.

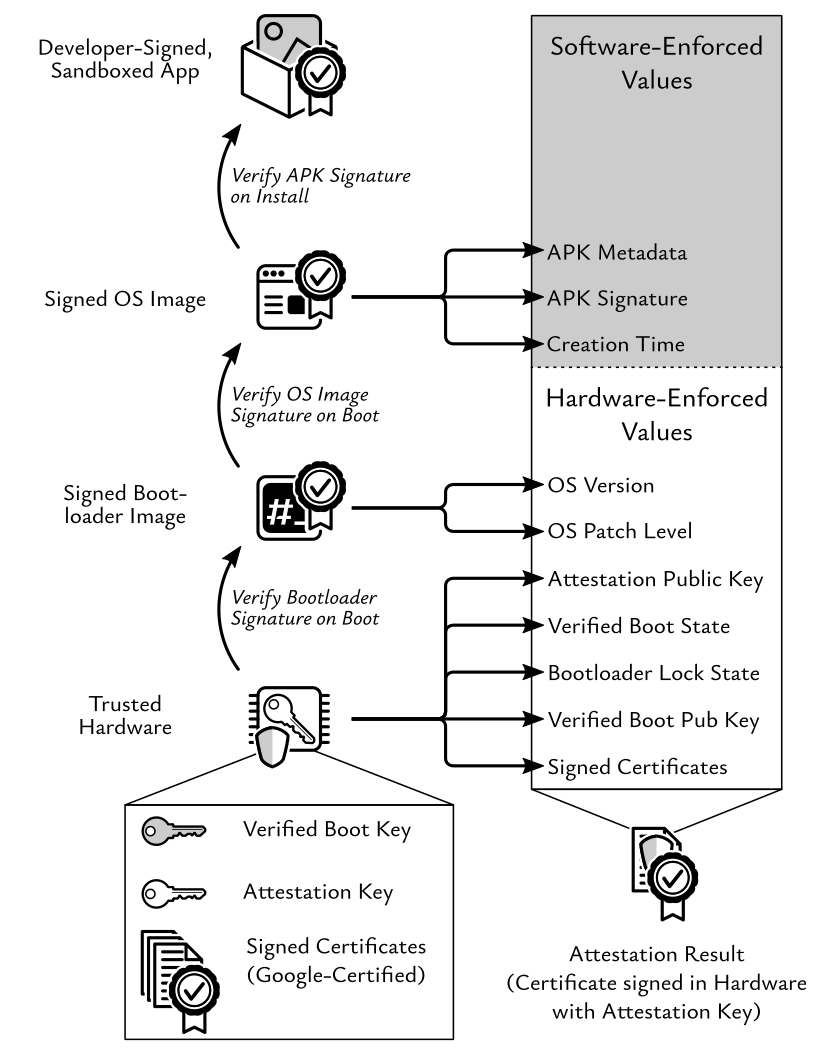

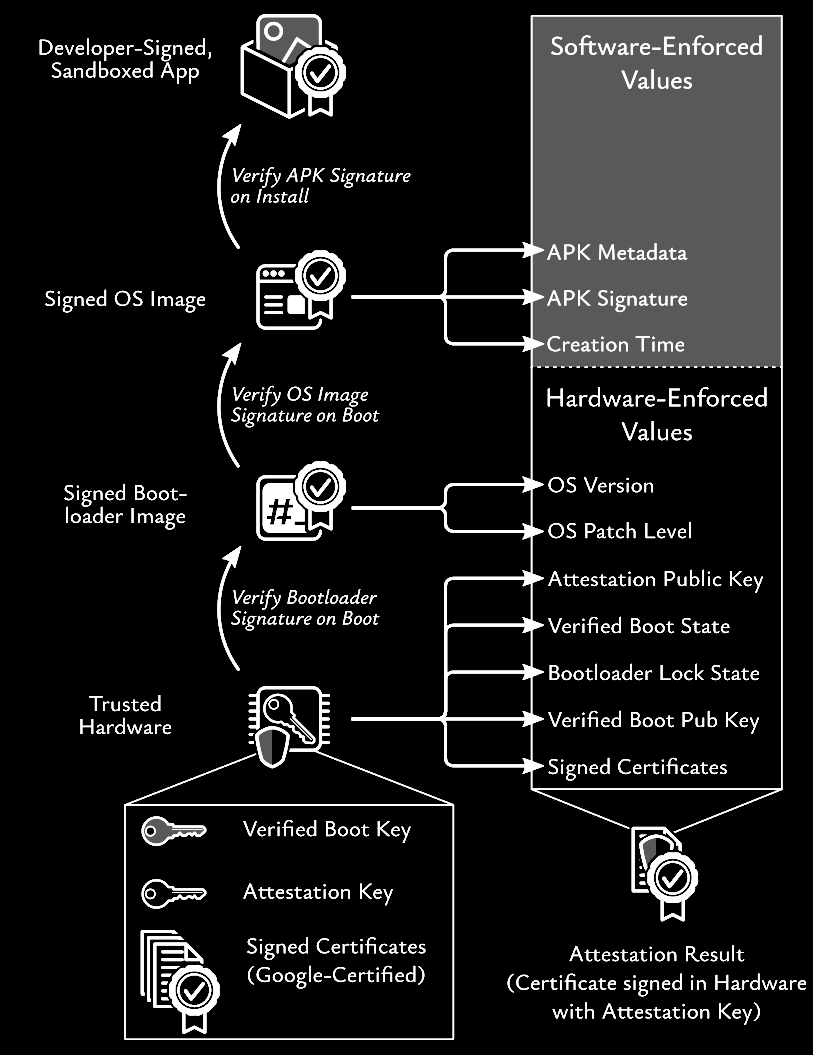

High-level structure of an Android key attestation result
Figure 1: High-level structure of an Android key attestation result

Tip

Keep Figure 1 at the ready while digging through this page, as it will be referenced throughout!

Boot-Time Trust Chain

  1. Boot ROM (immutable in SoC) verifies the first-stage bootloader using SoC fuses / OEM root.
  2. Bootloader verifies vbmeta and the partition chain via AVB. vbmeta contains the public key (or hash thereof) authorising images and rollback indexes.
  3. If verification passes and the bootloader is locked, boot proceeds with verifiedBootState = VERIFIED; otherwise SELF_SIGNED, UNVERIFIED, or FAILED states are signaled.
  4. dm-verity ensures runtime integrity of verified partitions (system/vendor/product).
  5. Rollback protection: bootloader maintains rollback index slots in tamper-resistant storage; images signed with older rollback index are rejected. Not all devices advertise this.

Attested System State

The RootOfTrust structure in the attestation extension contains:

  • verifiedBootKey: hash of the AVB root public key that authorised the boot images.
  • deviceLocked: boolean derived from bootloader lock state.
  • verifiedBootState: one of VERIFIED, SELF_SIGNED, UNVERIFIED, FAILED.
  • Patch claims: osVersion, osPatchLevel, and (on newer devices) bootPatchLevel/vendorPatchLevel.

Policy implication: Your server can require deviceLocked=true, verifiedBootState=VERIFIED, and minimum patch levels; optionally pin the expected verifiedBootKey (accept OEM keys only, or accept your enterprise/sovereign AVB key(s) if you operate a trusted ROM programme).

App Identity at Install Time

  • Signature Scheme v2/v3/v4 embeds signatures over the app contents at the APK level (post-Android 7).
  • The platform verifies the signing certificate(s) when installing/updating an app.

Attested App Identity

The AttestedApplicationId section contains: - package_infos - package_name identifying your application - version indicating the version of the application - signature_digests: values (SHA-256 digests of the signing certificate(s)) pulled from the Package Manager at attestation time.

Policy implication: Your server must check against the package name and signer digest(s) of your release build(s). If you use key rotation, store and accept all legitimate digests. Re-attest while enforcing application versions to enforce updates.

Attestation Flow (Device and Server)

On-Device Production

  1. App requests a new key from KeyMint/StrongBox with required properties (algorithm, size, purposes, user-auth requirements).
  2. App calls attestKey with a fresh server-provided challenge.
  3. KeyMint produces a certificate chain for the key:
    • Leaf certificate embeds the attestation extension (KeyDescription) with RootOfTrust, AttestedApplication, and AuthorizationLists.
    • Intermediates up to a Google Attestation Root (for hardware attestation on certified devices).
  4. App sends {certChain, challenge, metadata} to your back-end.

Server-Side Verification Checklist

  1. Chain validation: X.509 path build and verify (signatures, BasicConstraints, EKU if present, issuer/subject continuity).
  2. Time validity: validate NotBefore/NotAfter on intermediates; tolerate known leaf-time quirks only if you apply strict freshness windows (see §6).
  3. Attestation root: anchor in Google’s published attestation-root set (keep updated).
  4. Extension parse: parse KeyDescription with a standards-compliant ASN.1/DER library; respect DER sorting for SET OF.
  5. Challenge: exact match to your one-time challenge; reject reuse or replay.
  6. Root-of-trust: require verifiedBootState = VERIFIED, deviceLocked = true; optionally pin verifiedBootKey and enforce minimum osPatchLevel / vendorPatchLevel / bootPatchLevel.
  7. App binding: require packageName and signer digest(s) to match your allow-list; optionally pin versionCode via an app-side claim bound to the challenge.
  8. Key properties: check securityLevel in hardwareEnforced is TrustedEnvironment or StrongBox; verify userAuth parameters (auth-per-use / timeouts) meet your policy.
  9. Revocation: check against revoked attestation keys (Google feeds) and your own revocation lists; fail closed in high-assurance contexts.
  10. Decision & logging: produce an auditable decision with specific reasons (e.g., “boot not verified”, “signer mismatch”, “patch too old”).

User Authentication and Key Lifecycle

  • User presence / authorisation: If userAuth is required, KeyMint enforces biometric/PIN at key use. The authorisation policy (per-use, validity window) appears in the AuthorizationLists and is remotely checkable.
  • Invalidation triggers (enforced by Android, no server telemetry needed):
    • Disable/reset of secure lock screen → auth-bound keys invalidated.
    • Biometric enrollment changes (if so configured) → invalidate.
    • Bootloader unlock or verified-boot failure → keys wiped/unusable; subsequent attestations show deviceLocked=false or degraded verifiedBootState.
    • Factory reset → keys deleted.
  • Best practice: bind critical operations (e.g., credential issuance, high-value transactions) to auth-required keys whose attestation you already validated.

Certificate Chains and Trust Anchors

  • Expect a chain terminating in a Google Hardware Attestation Root for hardware-backed attestation.
  • Always validate full chain: signatures, validity, path length, EKU (if present).
  • Reject software/hybrid attestation unless explicitly allowed for test scenarios; keep a separate trust store for emulators.
  • Keep the attestation root set and revocation lists up to date on your server; retrieve and cache periodically.

Verification Pitfalls to Avoid

  • Ignoring the challenge: always bind to a fresh, single-use nonce and reject replays.
  • Trusting package name alone: you must match signing certificate digest(s).
  • Accepting SELF_SIGNED states: only acceptable for tightly scoped test channels.
  • Relying solely on patch level: combine with verified boot, device lock, and (optionally) pinned verifiedBootKey.
  • Using too strict ASN.1 parsers and validation logic: Android devices come with encoding flaws that need to be accounted for. See Android-specific quirks.
  • Time Drift: Out-of-sync clocks between clients and server can cause the PKIX validation part to fail. See also Clock Drifts and Temporal Validity.

References and Libraries

See the consolidated References:
