Technical — iOS App Attest Deep Dive

This page explains how trust is established for an iOS app instance using App Attest, from key creation in the Secure Enclave to attestation and ongoing assertions, and how a service verifies those artifacts. It links to Apple’s canonical sequence diagrams and focuses on how App Attest works, not on client library configuration.

Setup

Apple requires developers to perform some up-front tasks and configure the build setup to App Attest. In particular, the following requirements must be met:

  • Active Apple Developer Program membership
  • iOS device (not Simulator) as target, running iOS 14+
  • Xcode 15+ recommended

Step 1: Prepare your App ID and Signing

  • Ensure your app’s Bundle ID is registered in your Apple Developer account.
  • Build and run on a physical device using a valid signing certificate and provisioning profile.

Step 2: Add Required Capabilities in Xcode

  • Open your project > target > Signing & Capabilities.
  • Add Associated Domains (recommended):
    • If you’ll bind to your domain, add webcredentials:your.domain (and/or applinks:your.domain for related flows).
  • App Attest entitlement:
    • Click on "+ Capability"
    • Select "App Attest"
    • An app can be built for two environments: production for App Store distribution and debug/development/sandbox for testing/development purposes.
      • Your server must verify this!
      • Warden Supreme exposes this via the iOS-specific sandbox configuration parameter

Once everything is set up, App Attest can be used in your app.

End-to-End Flow (High-Level)

Apple platforms support attestation and assertion, aimed at different use cases. Attestation is the initial step to establish a device's and an app's integrity, while assertion can be used to (re-)assert integrity prior to executing critical actions.

  1. Attestation

    • App calls generateKey() to create a Secure Enclave key for App Attest.
    • App obtains a one-time server challenge and then calls attestKey(keyId, clientDataHash).
    • Apple returns an attestation object proving that the key belongs to a legitimate instance of your app, and a * certificate chain rooted in Apple’s App Attest CA*.
    • App sends {attestationObject, keyId, challenge} to your back-end.

  2. Ongoing use (Assertion)

    • For each privileged request, your server issues a fresh challenge.
    • App calls generateAssertion(keyId, clientDataHash) to get an assertion: {authenticatorData, signature, keyId, (counter)}.
    • Server verifies the assertion using the stored public key (from registration) and ensures the counter increases, proving continuity.

From a high-level point of view, both flows involve the same entities, as shown in Figure 1.

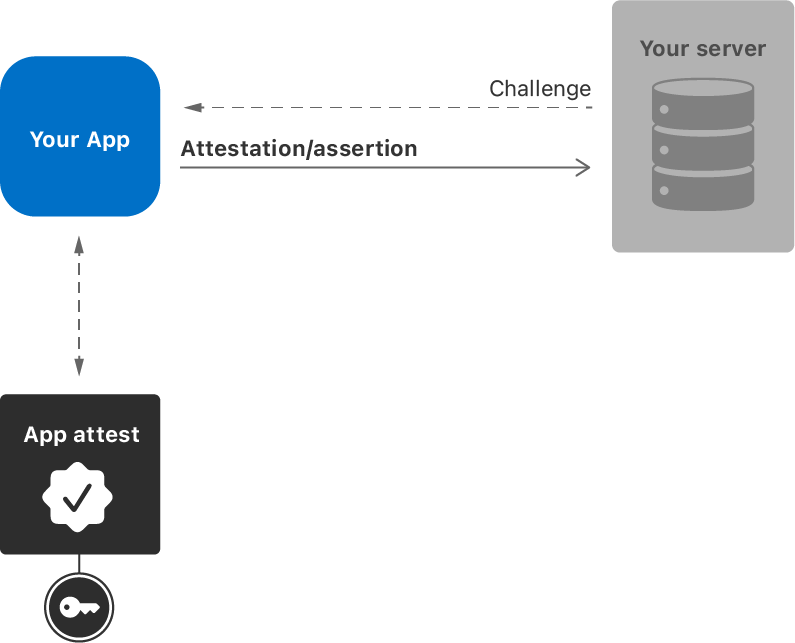

Apple App Attest Flows
Figure 1: Apple App Attest Flows

Warden Supreme, relies on attestation, but also generates a separate public/private key pair inside the Secure Enclave, and feeds the public key's hash into clientDataHash, to bind the public key to the attestation. Since Apple platforms do not allow for attesting keys (the hardware-backed keys used for attestation cannot be used), this way of binding a usable key to an attestation is used to emulate key attestation (see Emulating Key Attestation).

Warden Supreme does not natively support assertion (for reasons explained below) and relies on attestation, and emulating key attestation to replicate Android's behaviour for a consistent UX across both platforms.

Attestation Validation

Parse & Verify the Certificate Chain

  • Extract attStmt.x5c and build a chain to Apple’s App Attest intermediate and root; verify signatures, Basic Constraints, key usages, and time validity.
  • Pin trust to Apple’s App Attest roots; do not rely on a general-purpose system trust store.

Recompute and Verify the Nonce

Apple defines the nonce as the SHA‑256 hash of authenticatorData || SHA256(challengeBytes) (concatenation of raw bytes). it is calculated as follows:

  1. Compute clientDataHash = SHA256(challengeBytes) using exactly the challenge your server issued.
  2. Concatenate authenticatorData || clientDataHash, then compute nonce = SHA256(...).
  3. Compare nonce to the value in the leaf attestation certificate extension as specified by Apple’s guide.

Validate authenticatorData Semantics

Limitations

Unlike Android, iOS does not allow binding arbitrary app keys to system-enforced user authentication with configurable timeouts, nor can such user-auth requirements be attested for those keys.

Within authenticatorData, validate at least:

  • RP ID hash: Must equal SHA‑256( TeamID + "." + BundleID ). Reject if mismatched.
  • Flags: Ensure expected bits are set (user present/verified semantics are Apple-defined for App Attest; you primarily rely on counter and RP ID hash).
  • Sign count / counter: On attestation, Apple requires counter = 0.
  • AAGUID / environment: Confirms Production vs Sandbox; reject environment mismatches.

Emulating Key Attestation

App Attest natively attests the app instance (App ID) and the Apple‑managed key. To emulate key attestation for your application key material:

  1. Your client builds clientDataBytes that includes your public key bytes (to be used for subsequent protocol steps) and the server challenge.
  2. Compute clientDataHash = SHA256(clientDataBytes) and pass it into attestKey / generateAssertion.
  3. On the server, after validating the Apple artifacts, extract and validate the public key bytes embedded in your client‑data.
  4. This binds Apple’s attestation to your application key, yielding verifiable linkage similar to Android key attestation.

Warden Supreme provides emulated key attestation out of the box, automating this whole process, and streamlining back-end checks by relying on Vincent Haupert's excellent DeviceCheck / AppAttest library. Hence, no custom logic is required on clients and on the back-end.

Assertion Details and Usage Model

As touched, Apple platofrms allow asserting an app's and device's state after an initial attestation has been performed and recorded. This section subsumes the intended usage modle as postulated by Apple.

Assertion Contents

An assertion from generateAssertion(keyId, clientDataHash) yields: - authenticatorData: Includes the RP ID hash and a monotonically increasing sign counter. - signature: Over authenticatorData || clientDataHash using the registered App Attest key. Hence, the key used for the original attestation must be recorded. - keyId: Identifies the App Attest key pair on device.

The server verifies the signature with the stored public key (from the attestation/registration step) and validates that the RP ID hash matches the expected SHA256(TeamID + "." + BundleID).

The Sign Counter

An assertion contains a counter value. - The counter starts at 0 at attestation time. - Each successful generateAssertion should increase it by at least +1. - The server needs to persist the highest seen counter per keyId. On each request: - Reject if the new counter <= last seen (replay or rollback). - Accept if strictly higher, then update stored value. - Counter continuity provides tamper-resistance (e.g., against state rollback from device backups).

Periodic Re-Attestation via Assertions

Complyxity Ahead!

Performing re-attestation through attestation requires tracking device states over the whole lifetime of the service used by the app.

  • Apple intended assertions to guard privileged actions with a fresh, server-bound challenge.
  • You can treat recurring assertions as “lightweight re-attestation”:
    • Issue a challenge at session start, high-risk operations, or on a cadence (e.g., hourly).
    • Require a valid assertion and counter increment to proceed.
    • This confirms the same App Attest key is active, on the same app instance, and not rolled back.

Apple’s Intended Usage of App Attest

Warning

Even "lightweight re-attestation" requires devices to interact with Apple services, alowing for user tracking

  • Protect critical sections and privileged API calls with per-request challenges and assertions.
  • Use full attestation (registration) once per app instance, then rely on assertions to maintain trust over time.
  • Assertions are expected to be online: the device contacts Apple during assertion generation, so budget for this latency in UX and retries.

Assertion Wrap-Up

Using assertions as “re-attestation” has two notable downsides: - Back-end state management burden - You must persist per-device key state (keyId, highest seen counter, environment), enforce strict counter monotonicity, handle resets/rollbacks (e.g., device restores), and design recovery paths (counter desync, key rotation, multi-device users). This adds storage, concurrency control, migration, and incident-handling complexity. Risk-based policies (cadence, per-action challenges) further increase statefulness and operational overhead.

  • Privacy and tracking concerns
    • Assertions require contacting Apple services. This creates additional metadata exposure to Apple (time, frequency, success/failure of assertions) and can enable cross-session correlation via stable keyIds if you don’t carefully scope/rotate them. On your side, the very act of frequent assertions encourages building long-lived device-level identifiers and histories, which can increase linkability of user behavior. Minimizing assertion cadence, scoping identifiers, and separating environments reduces—but does not eliminate—these privacy risks.

For these reasons, Warden Supreme does not natively support it, but rather relies on attestation with emulated key attestation to mimic the simple, but powerful model Android uses. In the end, re-attestation using fresh attestations rather than asserting a state before a critical section is much more decoupled from specific user actions.

Receipts

A third concept not discussed so far is the receipt and its dual purpose. On the one hand, it is an integral part of the attestation structure sent from an iOS device to the back-end. It contains, for example, the bundle identifier, the attestation certificate and a validity period.

On the other hand, it is possible to save this receipt on the back-end after a successful attestation and send it to Apple's servers at a later point in time, for additional risk assessment. In return, you'll receive a new receipt with a risk metric. This is where things get somewhat fuzzy. According to Apple, it indicates the number of attested keys associated with a given device over the past 30 days and one should look for this value to be a low number (for whatever that means).

The main issue with sending receipts to Apple servers has less to do with vague claims about an opaque service, but rather with privacy: While Apple already learns quite a bit through AppAttest, it is only possible to send receipts to Apple's servers after registering to receive an authentication token and in the end, your back-end will directly communicate with infrastructure operated by Apple.

Note

For critical services and a real risk of a single rogue device being used to create hundreds or thousands of attestations by proxy, it can be viable to utilise Apple's service to assess fraud risk. Use at your own discretion.

In summary, Apple is able to provide a risk metric that is highly dependent on user behaviour with no clear guidance on how to interpret the metric at a substantially privacy cost. For these reasons, Warden Supreme considers this out of scope. However, Warden Supreme provides a ValidatedAttestation object at the end of a successful attestation verification and this object contains the receipt that can be extracted, stored, and sent to Apple for risk assessment, if desired.

Operational Guidance

  • Online dependency: App Attest requires a live connection to Apple for attestation and assertions. Implement retries/queuing and clear UX. See: https://developer.apple.com/documentation/devicecheck/preparing-to-use-the-app-attest-service
  • Rate limiting: Avoid unnecessary re‑attestation; cache successful registrations and only assert per privileged request or session cadence that suits your risk posture.
  • Stage separation: Keep Sandbox and Production completely separate — App ID, keys, and trust anchors don’t mix across stages.
  • Privacy: Apple observes attestation/assertion events.

Verification Pitfalls to Avoid

These mostly apply when rolling your own, since Signum Supreme takes care of most of these. Still, for the sake of completeness, this section lists general common pitfalls.

  • Wrong nonce computation: Use nonce = SHA256( authenticatorData || SHA256(challengeBytes) ). Do not swap order or hash the whole CBOR.
  • Ignoring environment: Production vs Sandbox must match your deployment stage.
  • Trusting system roots: Pin to Apple’s App Attest roots; don’t accept arbitrary Apple CAs.
  • Skipping counter checks: The monotonic counter is your continuity signal; enforce strictly increasing values.
  • Leaking key material: Never transmit or store private keys. Persist only the public key and minimal metadata.
  • Time Drift: Out-of-sync clocks between clients and server can cause the PKIX validation part to fail. See also Clock Drifts and Temporal Validity.
